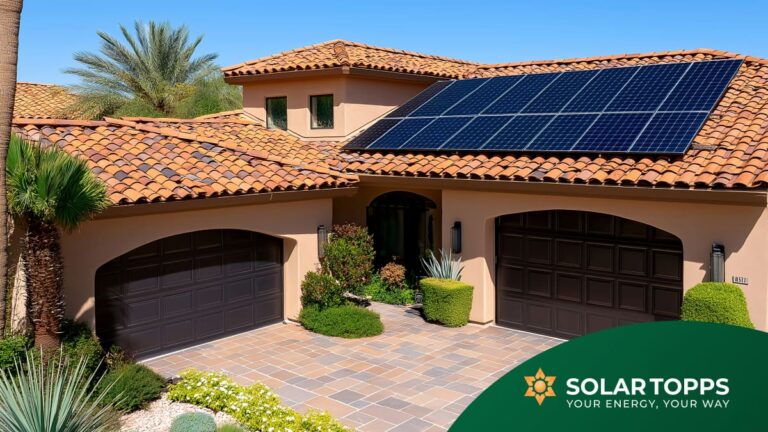

What is the 120% Rule in Solar? A Phoenix Homeowner’s Guide

Published: August 7, 2025

Installing solar panels on your Phoenix home involves more than choosing the right panels and finding optimal roof placement. One crucial technical requirement that often determines your system size is the 120% rule in solar installations. This National Electric Code (NEC) regulation ensures your electrical system can safely handle both solar power generation and grid electricity without creating safety hazards.

Understanding this rule helps Phoenix homeowners make informed decisions about their solar investment and avoid costly electrical upgrades. Whether you’re exploring solar options or planning a system expansion, knowing how the 120% rule affects your installation can save time, money, and frustration during the permitting process.

This guide breaks down the 120% rule in simple terms, explains when main panel upgrades become necessary, and provides practical examples relevant to Phoenix metropolitan area homes. You’ll learn how to calculate your system limitations and explore solutions when the rule restricts your desired solar capacity.

Understanding the 120% Rule in Solar

The 120% rule, established by the National Electric Code, sets limits on how much combined electrical capacity can flow through your home’s main electrical panel. This safety regulation prevents electrical fires by ensuring your panel’s busbar doesn’t exceed its thermal capacity when handling both solar power and grid electricity simultaneously.

Here’s how it works: The rule states that your main breaker rating plus 125% of your solar inverter’s maximum continuous AC output cannot exceed 120% of your panel’s busbar rating. This calculation accounts for the fact that solar systems generate power continuously during daylight hours, requiring the 125% safety factor for continuous loads.

When the 120% Rule Applies

The 120% rule specifically applies to load-side interconnections, which represent the most common residential solar installation method. In these systems, your solar inverter connects to your main electrical panel through a dedicated circuit breaker, feeding power directly into your home’s electrical system.

The rule doesn’t apply to supply-side connections (line-side taps), where solar power connects before your main breaker and electric meter. However, these connections aren’t always feasible for Phoenix homes, particularly those with meter-main combination panels common in newer subdivisions throughout the metropolitan area.

Calculating Your Solar Capacity Under the 120% Rule

Determining your maximum allowable solar capacity requires a straightforward calculation using your electrical panel specifications. Most Phoenix area homes built in the last two decades feature 200-amp main panels, making this a relevant example for many homeowners.

Step-by-step calculation:

• Take your busbar rating and multiply by 1.2 (120%)
• Subtract your main breaker rating
• Divide the result by 1.25 to account for continuous load requirements

Example with a standard 200-amp panel:

• 200 amps × 1.2 = 240 amps
• 240 amps – 200 amps = 40 amps
• 40 amps ÷ 1.25 = 32 amps maximum solar capacity
• 32 amps × 240 volts = 7.68 kW maximum system size

This calculation reveals that a standard 200-amp panel with a 200-amp main breaker limits your solar system to approximately 7.68 kW without modifications.

Common Panel Configurations in Phoenix

Phoenix metropolitan area homes typically feature these electrical panel configurations:

200-amp panels with 200-amp main breakers (most common in homes built after 1990)

• Maximum solar capacity: 7.68 kW
• Suitable for smaller households or high-efficiency systems

150-amp panels with 150-amp main breakers (common in older homes)

• Maximum solar capacity: 4.8 kW
• Often requires upgrades for adequate solar production

100-amp panels (found in older homes built before 1980)

• Maximum solar capacity: 2.4 kW
• Almost always requires main panel upgrade

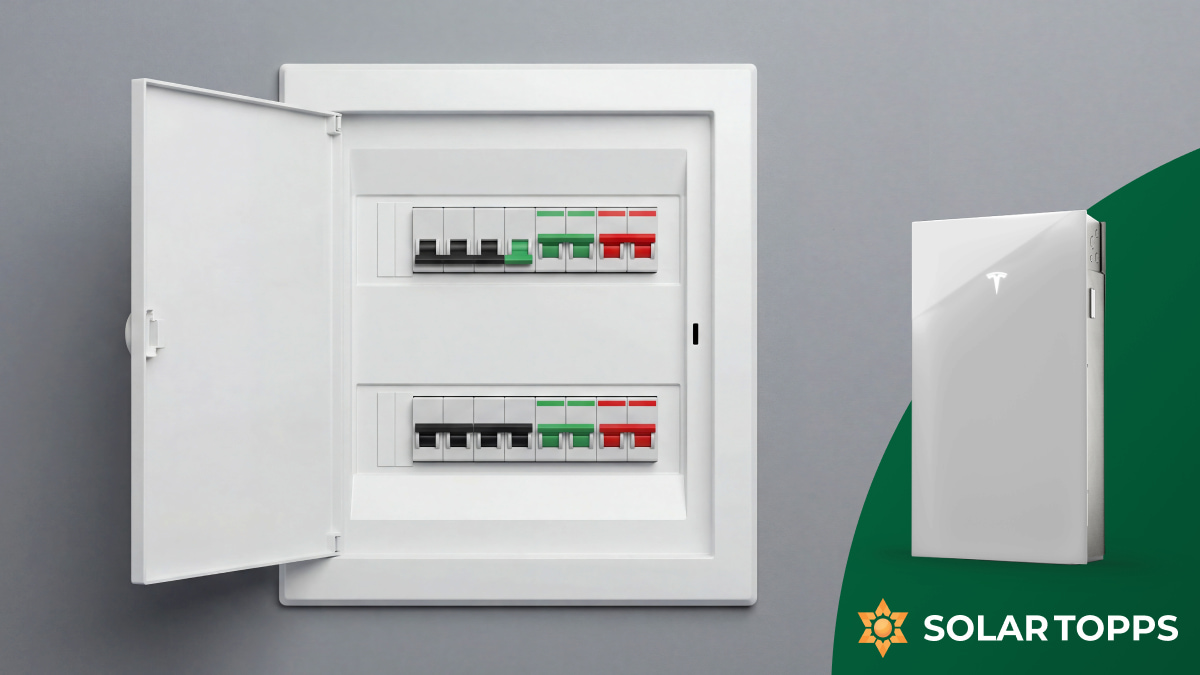

What Is a Main Panel Upgrade for Solar?

A main panel upgrade involves replacing your existing electrical panel with one that can safely accommodate larger solar systems. This upgrade becomes necessary when your desired solar capacity exceeds the limitations imposed by the 120% rule on your current panel.

The upgrade typically includes replacing the entire electrical panel, upgrading the main breaker, installing new busbars rated for higher capacity, and ensuring all connections meet current electrical codes. For Phoenix homeowners, this work must be performed by licensed electricians and requires city permits and inspections.

Types of Panel Upgrades

Standard capacity increase: Upgrading from a 100-amp or 150-amp panel to a 200-amp panel provides sufficient capacity for most residential solar installations while meeting modern electrical demands.

Solar-ready panel installation: These specialized panels feature 225-amp busbars with 200-amp main breakers, specifically designed to accommodate larger solar systems. Using our calculation: (225 × 1.2) – 200 = 70 amps, allowing for 56 amps of solar capacity or approximately 13.44 kW.

Commercial-grade residential panels: For homes requiring extensive solar capacity, 400-amp panels provide maximum flexibility for large solar installations and future electrical needs.

Does the 120% Rule Apply to Hot Bus Configurations?

The 120% rule applies universally to load-side solar connections regardless of whether your panel uses a hot bus or standard busbar configuration. Hot bus panels, which feature continuous busbars running the length of the panel, still must comply with the same safety calculations.

Hot bus configurations don’t provide exemptions from the 120% rule because the fundamental safety concern remains the same: preventing excessive current flow through the busbar that could exceed its thermal rating. The busbar material and design determine the amperage rating, not the specific connection method.

Hot Bus vs. Standard Busbar Considerations

Hot bus panels offer installation flexibility by allowing solar breakers to be positioned anywhere along the busbar length. However, the 120% rule calculation remains identical regardless of breaker positioning. Some installers prefer hot bus panels for their ease of installation, but this doesn’t change the fundamental capacity limitations.

Solutions: When the 120% Rule Limits Your System

When your desired solar system exceeds your panel’s 120% rule limitations, several solutions can help you achieve your energy goals without compromising safety or code compliance.

Main Breaker Derating

The simplest solution involves replacing your main breaker with a lower-rated unit, creating additional capacity for solar without replacing the entire panel. This approach works when your home’s actual electrical load remains well below the new main breaker rating.

Example scenario: Replacing a 200-amp main breaker with a 175-amp breaker in a 200-amp panel:

• (200 × 1.2) – 175 = 65 amps available for solar
• 65 amps ÷ 1.25 = 52 amps solar capacity
• 52 amps × 240 volts = 12.48 kW maximum system

This modification increases your maximum solar capacity from 7.68 kW to 12.48 kW, representing a 62% increase without replacing the entire panel.

Load Analysis Requirements

Before derating your main breaker, a qualified electrician must perform a load analysis to ensure your home’s electrical demands won’t exceed the new main breaker rating. This analysis considers:

• Major appliances and their electrical requirements
• HVAC system capacity and usage patterns
• Electric vehicle charging needs
• Pool equipment and outdoor lighting
• Future electrical expansion plans

Phoenix homes with electric heating, multiple air conditioning units, or planned electric vehicle purchases may not be suitable candidates for main breaker derating.

Complete Panel Upgrade

When derating isn’t feasible due to high electrical loads, a complete panel upgrade provides the most comprehensive solution. This approach offers several advantages beyond solar compatibility:

Increased electrical capacity for modern appliances and future needs

Enhanced safety features including arc-fault and ground-fault protection

Code compliance with current NEC requirements

Improved home value through modernized electrical infrastructure

Commercial Solar Panel Repair Considerations

For Phoenix businesses exploring solar installations, the 120% rule becomes more complex due to three-phase electrical systems and higher capacity requirements. Commercial solar panel repair and maintenance also requires understanding these electrical limitations to ensure continued code compliance.

Commercial installations often benefit from supply-side connections that bypass 120% rule limitations, but these require coordination with utility companies and specialized engineering analysis.

How to Figure Out How Many Solar Panels You Need

Determining your solar panel requirements involves balancing your energy needs with electrical system limitations imposed by the 120% rule. Phoenix homeowners should start by analyzing their electricity usage patterns and understanding their panel capacity constraints.

Energy Usage Analysis

Review 12 months of electricity bills to calculate your average monthly kWh consumption. Phoenix area homes typically consume 1,000-2,000 kWh monthly, with peak usage during summer cooling months. Your solar system should generate 100-120% of your annual consumption to account for seasonal variations and system inefficiencies.

System Sizing Considerations

Available roof space and orientation affect panel quantity and system design

Electrical panel limitations determine maximum system capacity regardless of roof space

Local shading from nearby buildings or trees impacts system performance

Budget constraints may require phased installation approaches

A qualified Phoenix solar installer can perform detailed analysis considering all these factors while ensuring 120% rule compliance.

Phoenix-Specific Factors

Phoenix metropolitan area solar installations must account for:

Excessive heat effects on panel performance and electrical components

Monsoon season weather considerations for installation timing

HOA requirements in planned communities throughout the region

City permitting processes varying between Phoenix, Scottsdale, Tempe, and surrounding municipalities

Solar Breaker Panel Requirements

Your solar installation requires dedicated circuit breakers sized appropriately for your inverter’s output capacity. These solar breakers must integrate into your electrical panel while maintaining 120% rule compliance and ensuring proper system protection.

Breaker Sizing Calculations

Solar breakers must be rated at 125% of the inverter’s maximum continuous output current to handle continuous loads safely. For example, an inverter with 32-amp output requires a 40-amp breaker (32 × 1.25 = 40 amps).

Single inverter systems require one appropriately sized breaker

Multiple inverter systems may require individual breakers or a sub-panel approach

Micro-inverter systems typically use combiner boxes connecting to a single main breaker

Sub-Panel Solutions

When multiple inverters exceed your main panel’s available space or capacity, a dedicated solar sub-panel provides an effective solution. This approach combines multiple solar circuits into a single connection point, simplifying the main panel integration while maintaining code compliance.

The sub-panel must be sized according to the same 125% continuous load requirements, with the output breaker sized appropriately for connection to your main panel within 120% rule limitations.

Making Informed Solar Decisions in Phoenix

Understanding the 120% rule empowers Phoenix homeowners to make informed solar investment decisions based on their electrical system’s actual capabilities. This knowledge helps avoid disappointment when desired system sizes exceed electrical limitations and guides appropriate upgrade decisions.

Working with experienced Phoenix solar professionals ensures your installation maximizes available capacity while maintaining safety and code compliance. Qualified installers understand local permitting requirements, utility interconnection procedures, and the most cost-effective approaches to overcome 120% rule limitations.

The rule shouldn’t discourage solar adoption but rather guide proper system planning that delivers optimal performance within your home’s electrical constraints. Whether through main breaker derating, complete panel upgrades, or creative system design, solutions exist for virtually every Phoenix home to benefit from solar energy.

Consider the 120% rule as one factor in your solar decision-making process, balanced against your energy goals, budget constraints, and long-term electrical needs. Professional consultation provides personalized guidance based on your specific situation and ensures your solar investment delivers maximum value for years to come.
