Sting inverter vs microinverter: harnessing the Magic of Solar Inverters. Solar panels produce direct‑current (DC) electricity, but homes and the electrical grid rely on alternating‑current (AC) power. A solar inverter is the unsung hero that transforms the DC power from photovoltaic modules into the AC electricity used by everyday appliances and the grid. Beyond basic conversion, modern inverters manage power flow, synchronize with the utility, handle shading impacts through technologies like microinverters and optimizers, and support grid‑tied and off‑grid systems. The blog post will explain how inverters work, compare string and microinverter architectures, discuss wiring options such as series and parallel connections, and weigh the pros and cons of grid‑tied and off‑grid systems. It will also highlight market trends, such as the projected growth of the microinverter industry and improvements in cost and performance.

DC to AC: Unveiling the Quiet Magic Behind Solar Inverters

In a world obsessed with the latest gadgets and gizmos, the humble solar inverter rarely grabs headlines. Yet without it, your solar panels would be about as useful as a flashlight with dead batteries. Solar panels generate direct‑current (DC) electricity, while your refrigerator, television and the utility grid all run on alternating‑current (AC). The solar inverter is the magician that takes the jittery DC electrons from your roof and transforms them into the smooth sine waves your home needs. In this post, we’ll peel back the curtain on this underappreciated device, explore the different inverter architectures (string vs microinverter), demystify series and parallel wiring, and discuss whether a grid‑tied or off‑grid system makes sense for you. We’ll even sprinkle in a few graphs and a dash of wit – because renewable energy doesn’t have to be dry.

How Inverters Turn DC into AC

Solar inverters perform one primary job: they flip DC power into AC power. Modern inverters use solid‑state electronics to rapidly switch the direction of current and shape it into a sinusoidal waveform that synchronizes with your utility’s grid frequency. According to the U.S. Department of Energy, inverters accomplish this by using transistors to alternately connect and disconnect the DC input, then filtering the resulting pulses into a smooth AC sine wave. Early inverters were mechanical and expensive, but solid‑state designs have improved efficiency, reduced size, and lowered costs. Beyond simply converting DC to AC, advanced inverters can provide grid services: they regulate voltage and frequency, ride through grid disturbances, supply reactive power, and even perform “grid‑forming” functions to stabilize weak grids. Some models also incorporate battery‑charging circuitry for hybrid systems, eliminating the need for separate chargers.

Types of Solar Inverters: String, Micro and Hybrid

String Inverters

String inverters, sometimes called central inverters, have been the workhorse of residential and commercial PV systems for decades. Panels are wired in series (forming a “string”) and connected to a single inverter. They’re cost‑effective and relatively easy to maintain because the power electronics reside in one box on the ground. However, this architecture has some drawbacks. If one panel in a string is shaded, dirty, or malfunctioning, it drags down the entire string’s performance. The Global Electricity article likens this to a “Christmas light effect” where a single weak bulb reduces the brightness of the entire strand. String inverters also provide only aggregate monitoring; you can see the total output but not the performance of individual panels. They usually come with warranties of 10–12 years and can require DC optimizers if shading or module mismatch is an issue.

Microinverters

Microinverters take a radically different approach: a tiny inverter is attached to each solar panel. By converting DC to AC right at the module, microinverters isolate panels from each other, so shading on one doesn’t affect the rest. This architecture yields 5–25 % more energy according to research cited by NREL. Microinverters also eliminate high‑voltage DC wiring on the roof, reducing fire risk and improving safety – an advantage recognized by the National Fire Protection Association. They offer panel‑level monitoring and can be installed on roofs with complex orientations, maximizing energy harvest. The main downside has historically been cost; microinverters are 15–20 % more expensive upfront, though cost premiums have declined with economies of scale. Their reliability has improved to the point that manufacturers confidently offer 25‑year warranties.

Hybrid Inverters and Power Optimizers

Hybrid inverters integrate solar PV with battery storage. They act as both DC‑to‑AC inverters and battery chargers/inverters, enabling a home to store excess solar energy and use it later. Power optimizers, another category, are modules that sit between panels and a central inverter. They perform DC‑to‑DC conversion to maximize each panel’s output before sending it down the string. Optimizers are a middle ground between microinverters and traditional string architectures: they mitigate shading impacts without the cost of a microinverter system, and they still require a central inverter. Hybrid systems are particularly relevant for homeowners concerned about grid outages or those interested in time‑of‑use arbitrage.

String inverter vs Microinverter: A Comparative View

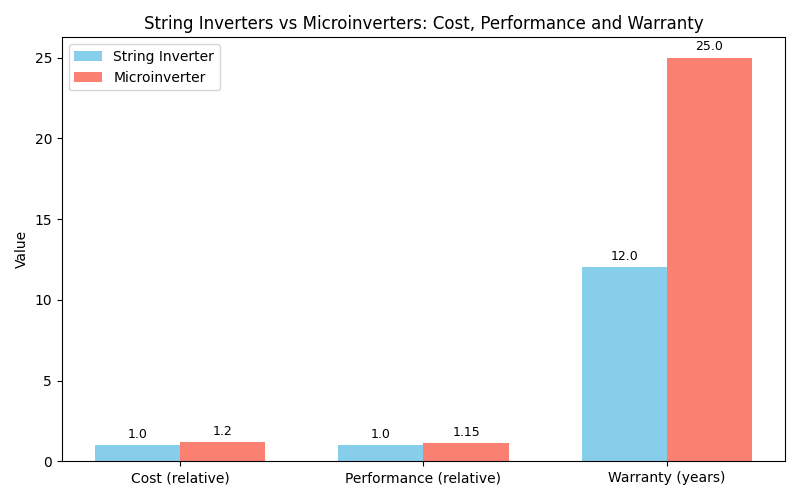

String Inverter vs Microinverters: Which One is Right for Your Solar System? Choosing between them can feel like deciding between a sedan and an electric sports car. Each has pros and cons. To illustrate some of the differences, the chart below compares relative cost, performance, and warranty. We assume a string inverter as the baseline cost and performance (normalized to 1) with a 12‑year warranty, and a microinverter system at roughly 20 % higher cost, 15 % higher energy yield, and a 25‑year warranty – values consistent with industry reports.



The choice ultimately depends on your roof’s complexity, shade patterns, budget and appetite for long‑term reliability. For simple roofs in full sun, a string inverter may offer the lowest cost per watt. For roofs with multiple orientations, partial shading or future expansion plans, microinverters or optimizers might deliver higher lifetime energy production and peace of mind.

Wiring Solar Panels: Series vs Parallel Connections

Before your panels ever meet the inverter, they must be wired together. Two basic approaches exist: series and parallel connections.

In a series connection, the positive terminal of one panel connects to the negative terminal of the next, forming a string. The voltages of each panel add together while the current remains constant. Connecting \(N\) photovoltaic modules in series increases the system voltage. For example, two 20‑volt modules connected in series produce a 40‑volt string. Higher voltage reduces current for the same power, which allows thinner wiring and smaller inverters, improving efficiency and lowering costs. However, shading or a mismatch on any module affects the entire series string; the current of the weakest module dictates the current for the whole string.

In a parallel connection, all positive terminals are connected together and all negative terminals are connected together. The voltage remains the same as a single module, but the currents add up. Parallel connections are used when voltage must remain low (e.g., for battery charging) or when different strings need to be combined. The downside is that each module must use thicker conductors to handle the higher current, and the overall voltage may be too low for efficient inversion. Many systems use a combination of series and parallel connections to balance voltage and current for the inverter.

 Off‑Grid vs Grid‑Tied systems: Which Is Right for You?

Grid‑Tied Systems

Grid‑tied systems are the most common. They forgo batteries and connect directly to the utility. When your panels produce more power than you need, the excess flows back to the grid and you receive a credit through net metering. The big advantages are simplicity and cost: there’s no need to purchase or maintain batteries, so the upfront cost is lower. Grid‑tied systems also benefit from rebates and tax credits, and if your solar generation falls short, the grid automatically supplies electricity. However, the trade‑off is that if the grid goes down, your inverter automatically shuts off for safety, leaving you powerless despite having solar. There may also be utility fees for grid access and demand charges during peak periods, though solar often mitigates these costs.

Off‑Grid Systems

Off‑grid systems are independent from the utility. They must generate, store and regulate all the electricity you use. During sunny periods, panels charge batteries through a charge controller—a voltage and current regulator that prevents overcharging. The stored energy runs appliances at night or during cloudy days. The appeal is self‑sufficiency: if the grid fails, your lights stay on. Off‑grid living also eliminates utility bills and appeals to those in remote areas where grid connections are unreliable or nonexistent. However, the upfront cost is much higher due to the need for batteries and a backup generator. Sizing the system is complex; an average home using 7 kWh per day might require six panels and three batteries. Batteries also have finite lifespans and must be replaced every 8–12 years, adding to maintenance costs.

Hybrid and Battery‑Backup Systems

Hybrid systems combine the best of both worlds. They remain grid‑connected but include batteries, often controlled by hybrid inverters. During a blackout, the hybrid inverter disconnects from the grid and forms its own mini‑grid, keeping critical loads powered. During normal operation, it can store excess solar energy in batteries for later use, optimizing for time‑of‑use electricity rates and backup power. Thanks to falling battery prices and incentives, hybrid systems are becoming increasingly popular for homeowners who want resilience without going fully off‑grid.

Market Trends: The Rise of Microinverters and Smart Inverters

The solar industry is witnessing a dramatic shift toward distributed power electronics. Microinverters and optimizers are growing rapidly, fueled by improvements in reliability, lower prices, and the growing complexity of roofs. The microinverter market, valued at roughly $2.8 billion in 2023, is projected to exceed $5.6 billion by 2028, growing at an annual rate of around 18.3 %. Cost premiums have fallen from 20–30 % to roughly 15 %, thanks to volume manufacturing and innovations. Meanwhile, the benefits – higher energy harvest, safer low‑voltage wiring, and long warranties – have driven adoption in residential and small commercial markets.

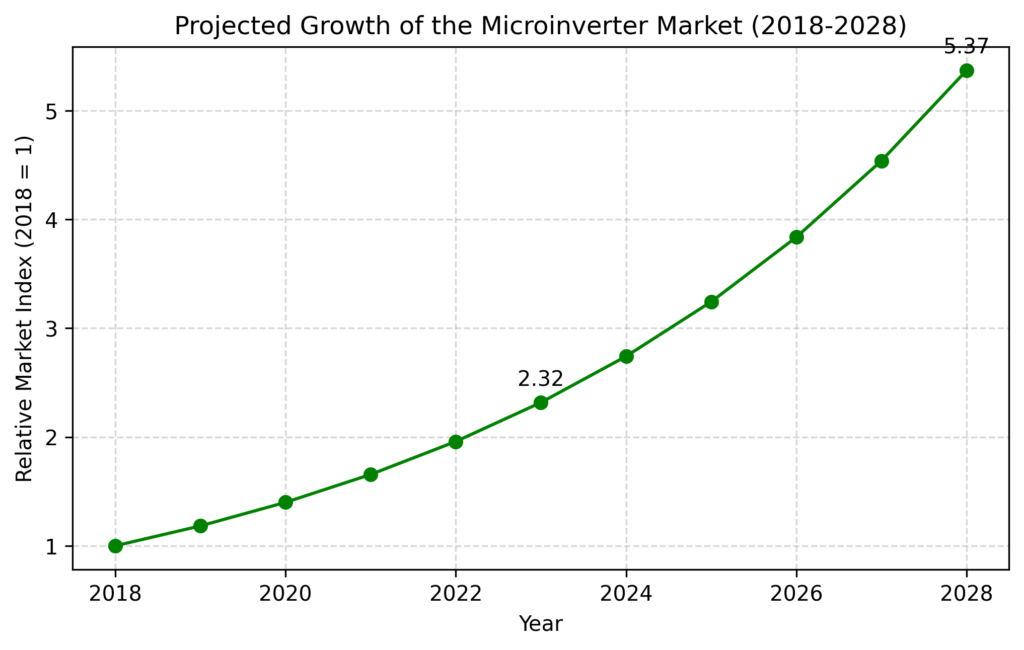

To visualize this trend, the line chart below shows a hypothetical projection of the microinverter market index (2018 = 1) growing at 18.3 % annually. While the numbers are normalized, the upward curve illustrates how demand for microinverters is expected to more than quintuple in a decade, echoing industry analysts’ forecasts.

In parallel, advanced inverter capabilities are becoming essential. Utilities now require smart inverters that handle voltage or frequency disturbances, supply reactive power, and provide grid-forming functions. California’s Rule 21 and similar standards around the world mandate these capabilities, turning inverters into active participants in grid stability. Future inverters may also integrate communication protocols, enabling dynamic control, virtual power plant participation, and real‑time grid support.

Choosing the Right Inverter: Factors to Consider

• Roof Complexity and Shading: If your roof has multiple orientations, vents, chimneys or shading from trees, microinverters or optimizers will mitigate shading losses and maximize energy harvest. For an unobstructed south‑facing roof, a string inverter could suffice.
• Budget and Total Cost of Ownership: String inverters have lower upfront costs, but microinverters often deliver more energy and have longer warranties, which can yield higher lifetime value. Evaluate the levelized cost of energy (LCOE) rather than just the sticker price.
• Monitoring Needs: Microinverters offer panel‑level data, enabling you to detect and resolve issues quickly. String inverters typically report only system‑level data unless paired with optimizers.
• Future Expansion: Microinverters make it easy to add panels later; each new panel simply plugs in. String systems may require re‑designing strings or adding additional inverters.
• Battery Integration: If you plan to add batteries, consider a hybrid inverter that can manage PV and storage seamlessly. Some microinverter manufacturers now offer battery solutions that integrate with their AC architecture.
• Grid Requirements: Check your local utility’s interconnection rules. Some jurisdictions require smart inverter capabilities for new installations.

Powering the Future: Why Inverters Matter More Than Ever

Solar inverters may not have the glamour of solar panels, but they are the brains and brawn of your photovoltaic system. They convert DC to AC, manage power, ensure safety, support the grid, and enable battery storage and smart-grid services.. From mechanical oscillators to modern semiconductors, inverter technology has come a long way. With microinverters, hybrid systems, and smart inverters, homeowners now have more options than ever.
